Show Product

Fabric specs: NN80~NN630
Width(mm): 300-2400
Usage:

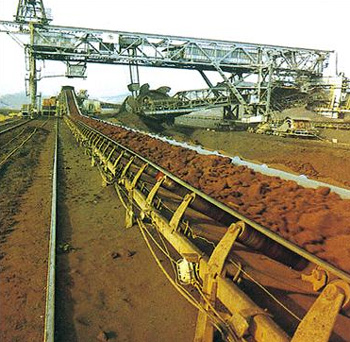

Nylon(NN) conveyor belt are fit for medium, long-distance and heavy-load transportation of materials, widely used in mining, metallurgical, architectural industry, ports, etc.

Features:
Nylon is one of the high quality synthetic fibers in rubber industry nowadays. The nylon canvas is woven by nylon fibers both in warp and in weft. It is the most widely used in fabric in rubber industry.
Nylon conveyor belts with nylon canvas have the following merits:
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile strength, good shock resistance, good trough ability, high adhesion between plies, splendid flexibility and long working life.

Specification and technical index of Nylon conveyor belt

Fabric type	Fabric structure		Fabric type	Fabric thickness	Cover rubber thickness		Width	Length
	warp	weft			Upper	Lower
Nylon(NN)	Nylon(N)	Nylon(N)	NN-100	0.75	1.5-8	0-4.5	400-2500	<=300
			NN-150	0.80
			NN-200	0.90			500-2500
			NN-250	1.15
			NN-300	1.25
			NN-400	1.45			800-2500
			NN-500	1.55

We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.

Standards	Cover Rubber			Adhesion
Standards	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
DIN 22102	Mpa	%	mm3	N/mm (≤1.5mm)	N/mm (>1.5mm)	N/mm
DIN 22102-Z	15	350	250	3.5	4.5	5
DIN 22102-W	18	400	90	3.5	4.5	5
DIN 22102-Y	20	400	150	3.5	4.5	5
DIN 22102-X	25	450	120	3.5	4.5	5

Standards	Cover Rubber			Adhesion
Standards	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
AS 1332	Mpa	%	mm3	N/mm (≤1.9mm)	N/mm (>1.9mm)	N/mm
AS 1332-N17	17	400	200	4	4.8	6
AS 1332-M24	24	450	125	4	4.8	6

Standards	Cover Rubber			Adhesion
Standards	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
RMA	Mpa	%	mm3	N/mm (≤1.6mm)	N/mm (>1.6mm)	N/mm
RMA-I	17	400		3	4.4	4
RMA-II	14	400		3	4.4	4

Standards	Cover Rubber			Adhesion
Standards	Tensile StrengTD	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
SANS 1173	Mpa	%	mm3	N/mm		N/mm
A	18	400	70	5		7
C	20	400	150	5		7
M	25	450	120	5		7
N	17	400	150	5		7
