Advantage: Strong tensile strength, long-life,little elongation,easy to trough, anti-bent, suitable for long distance, heavy load
and high-speed conveying materials.

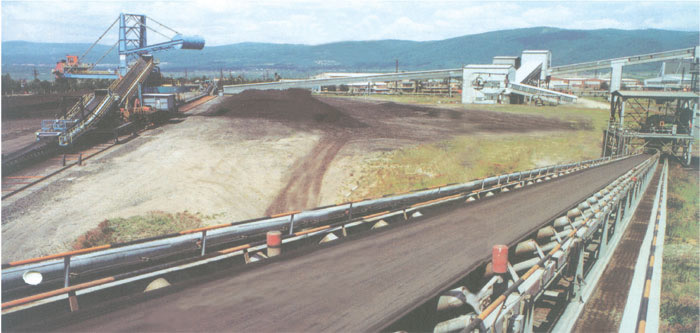

Use: Conveying materials in coal, mine. harbour, metallurgy, power station,chemical etc.field.

Type: (1) Conventional, Fire-resistant, Cold-resistant, Abrasion-resistant,Heat-resistant, Acid/alkali-resistant etc.(Refering

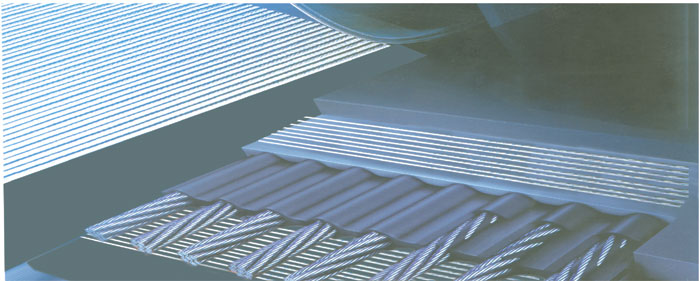

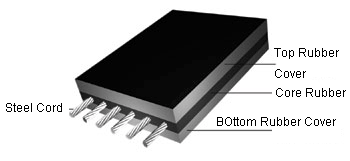

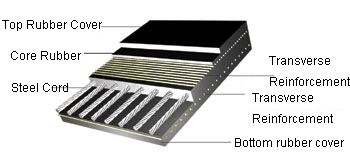

rubber cover)(2) General structure, Cross rigid structure, Anti-tearing iron ring structure.

ST630 ST800 ST1000 ST1250 ST1600 ST2000 ST2500 ST3150 ST3500 ST4000 ST4500 ST5000 ST5400 ST6000 Elongation Tensile Strength (N/mm) 630 800 1000 1250 1600 2000 2500 3150 3500 4000 4500 5000 5400 6300 Max.Diameter of Cord     (mm) 3.0 3.5 4.0 4.5 5.0 6.0 7.5 8.1 8.6 8.9/9.1 9.7 10.9 11.3 12.3 Top Rubber Cover Thickness(mm) 10 10 12 12 12 12 15 15 15 15/17 16 17 17 18 Bottom Rubber Cover Thicknees (mm) 5 5 6 6 6 8 8 8 8 8/8 8 8.5 9 10 Reference oweight    (mm) 5 5 6 6 6 8 8 8 8 8/8 8 8.5 9 10 Reference weight    (kg/ ㎡) 18 19.5 21.5 22.2 26.1 33.1 35.3 41.1 45 45/45 51 59 62 65 Width(mm) Cord Number 800 75 75 63 63 63 63 50 50 50           1000 95 95 79 79 79 79 64 64 64 64/65 59 55 55 54 1200 113 113 94 94 94 94 76 76 77 77/68 71 66 66 63 1400 133 133 111 111 111 111 89 89 90 90/79 84 78 78 74 1600 151 151 126 126 126 126 101 101 104 104/91 96 90 90 85 1800   171 143 143 143 143 114 114 117 117/103 109 102 102 96 2000     159 159 159 159 128 128 130 130/114 121 113 113 107 2200           176 141 141 144 144/125 134 125 125 118 2400           193 155 155 157 157/137 146 137 137 129 2600           209 168 168 170 170/148 159 149 149 140 2800                 184 184/160 171 161 161 151

Rubber cover thickness and density decide the belt weight.
Note:100-1500m Per Roll.
Belt beyonds the above specification, can also be made as required .Technical Data for GX STEEL CORD CONVEYOR BELT Belt.


Technical Data for GX STEEL CORD CONVEYOR BELT Belt

GX630 GX800 GX1000 GX1250 GX1600 GX2000 GX2500 GX3000 GX3500 GX4000 GX4500 GX5000 GX5500 GX6000                             (N/mm) Elongation Tensile strength 630 800 1000 1250 1600 2000 2500 3000 3500 4000 4500 5000 5500 6000 (mm) Max.Diameter Cord 4.5 4.5 4.5 4.5 6.0 6.0 7.2 8.3 8.7 9.1 9.7 10.9 11.3 12.3 (mm) Pitch of Cord 20 17 13.5 11 20 16 17 18 18 17 16 17 17 18 (mm) Thickness 19 19 19 19 23 23 27 28 28 29 30 30 32 32 (kg/m2) Reference Weight 23.9 21.3 25 25.7 32.2 33.7 40.2 41.9 43.6 46.6 49.8 51.8 55.9 57.9 (mm) Width   Cord Number 800 38 45 56 69 38 47 44 43             1000 48 56 70 87 48 60 56 53 53 56 60 56 56 54 1200   68 86 104 58 72 68 64 64 68 72 68 68 63 1400     100 122 66 84 78 74 74 79 84 79 79 74 1600     116 140 76 95 90 86 96 101 107 103 103 96 1800     127 157 86 108 102 96 96 101 107 103 103 96 2000     142 173 96 120 113 107 107 113 120 114 114 107 2200           132 125 118 118 125 133 125 125 118 2400           146 117 129 129 137 146 137 137 129 2600           158 148 140 140 148 158 148 148 140 2800           170 160 151 151 160 170 160 160 151



Type Standard and Main Technical ※  Conventional GB/T9970           DIN22131 ※※ Fire-resistant MT668              HG2539                     DIN22131        Conventional Flame Retardant HG2539  Heat Resistant HG/T2297                 ISO4195 Abrasion Resistant Shore Abrasion≤90mm3 Heat & abrasion Resistant Resistant≤125≤125℃,Shore Abrasion≤150mm3 Acid,alkali,oil resistant HG4-846 Cold-resistant Fragility Temperature-50℃ Oione-resistant Oione Density 50X10   40℃/72h No Chap

Min.Conveyor Roller Diameter

Type ST630 St800 St1000 ST1250 ST1600 ST2000 ST2500 ST3150 ST3500 ST400 ST4500 ST5000 ST5400 ST6000 MIn.conveyor roller diameter ￠(mm) 800 1000 1250 1400 1600 1800 2000

ST series are produced by GB/T 9770 standard,GX series by LuQ/Qd439 standard.
m)+Ear Rubber Concertion(m2)
