Show Product
 |

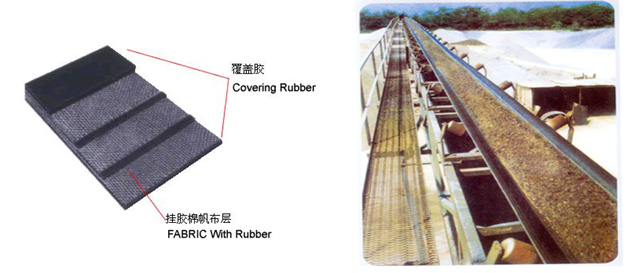

Product Name：Cotton Conveyor Belt
Fabric specs： CC56 TC70
Width(mm)：300-2400
Introduction: Tape coating performance grading table below:
| Conver grade | Tensile strength ≥ |
Elongation ≥ |
Abrasion ≤ |
Change Rate of tensile strengh and elong after aging |
|
| Mpa | Kgf/m2 | % | mm3 | % | |
| (H) | 24 | 240 | 450 | 120 | -25~+25 |
| (D) | 18 | 180 | 400 | 100 | -25~+25 |
| Light(L) | 15 | 150 | 350 | 200 | -25~+25 |
Adhesion and elongation of the belt
| Iterm | Between Plies N/mm |
N/mm Between rubber and carcass |
Elongation | ||
0.8 -1.5mm |
> 1.5mm |
Longitudinal elongation at break % ≥ |
Longitudinal elongation at reference load % ≤ |
||
| All the sample average N/mm,≥ |
3.2 | 2.1 | 2.7 | ||
| All samples minimum peakN/mm,≥ |
2.7 | 1.6 | 2.2 | 10 | 4 |
| Note: All samples shall not exceed the peak values 20N/mm | |||||
Specification and technical data of multi-ply cotton,polyester cotton conveyor belt
Fabric type |
Fabric structure |
Ply thickness (mm/p) |
Cover Thick- ness (mm) | (N/mm) Strength series |
(mm) Cover thickness |
Width mm |
Length mm |
||||||
| Weft | Warp | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Upper | |||||
| Cotton (cc) |
Cotton (c) |
Cotton (c) |
CC-56 | 1.1 | 112 | 168 | 224 | 280 | 336 | 2～8 | 0-～4.5 | 400～2500 | ≤300 |
| Polyester Cotton (TC) |
Polyester Cotton (TC) |
Cotton (c) |
TC-70 | 1 | 140 | 210 | 280 | 350 | 420 | 0-4.5 | 0-～4.5 | 400～2500 | ≤300 |
